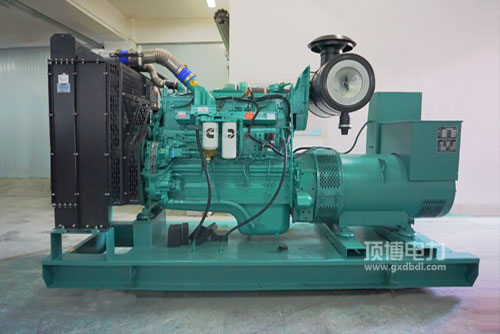

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯并网发电用启驱动力气油经济发展性好: 好的气油掌握构思，独具的STC、ESTC 分级管理掌握构思，非常规构思的缸筒顶面引燃室，压力喷洒气油，有效做雾化，引燃有效。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用打火机瞬态安全性能出众: 漂亮的打火机布局设置，合作康明斯差异化的的EFC平台，操作精密性高，异常时长快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用汽车发驱动力升瓦数高: 整体风格设计制作紧凑型轿车.性能场地布置有效率，作业平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷设备 QSNT. QSK19. QSK38. QSK50需求华人非路线第三方时期及北美洲Tier2. Tier 3排放量法规标准规定要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件可获得性好， 启心理运动及维修养生保健养生保健便民，成本价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出功率范围之内 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观简约时尚尺码 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质理 Dry Weight   940kg

224-310KW康明斯发电机组用启主观因素的特性：密度小， 压缩成比较高， 防雨百叶空气的烧水，不易开始，手机车截开关电源的首先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起主观因素型号规格	经常用工率(kW)Prime Power	预备效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
